Production Description

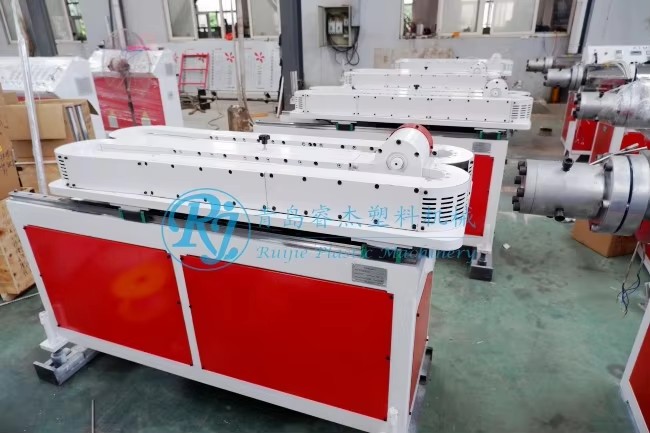

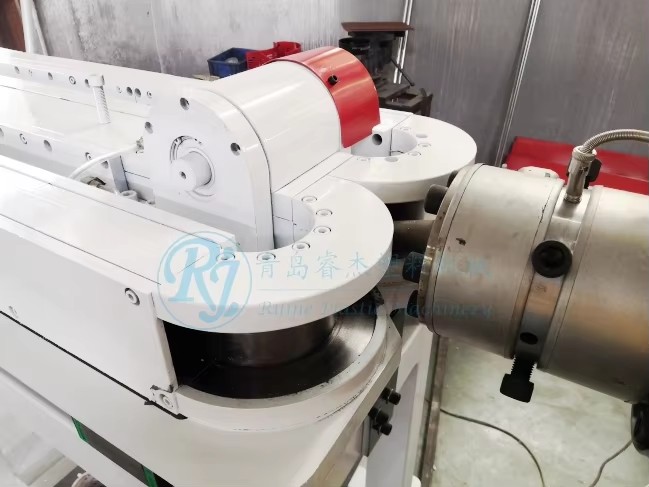

High speed corrugator:

Close type corrugater and vacuum for forming.

Forming mould is moving in a tunnel.

Forming tunnel os clod by water.

Forming mould is made of hard alloy steel and anti-corrosion and abrasion.

No any connection between forming mould, then reduce time to change.

Provide single wall corrugation  dead die.

Use: HDPE Single Wall Corrugated Pipe Extruder PVC Conduit Pipe Machine Production Line can produce pipe with heating-proof , corrosion-proof, friction-proof and high strength . And the pipe will be used in electricity/pneumatic wire conduit , Auto wire conduit , protection conduit , machine tools , electric locomative, projections installation , lights, automatic tools and other fields . It is a big market demand .

Characteristics and advantages:

1. Special structure design of screw and dies and convenience in changing mould blocks solve the problem of easy-worn of screw and barral ,as well as the difficulty in forming of plastic resin .

2. Corrugator adopts closed water cooling structure ,closed forming blocks chain ,and special design of rail, which will make all blocks matching correctly ,running stablely . You even couldn’t see the connecting line on the surface of pipe . Cooling water is cycling inside the corrugator ,it will make the cooling speed fast, so the production speed of pipe will be raised highly .

Meanwhile ,the corrugator adopts building blocks design , we can use same basis structure but different forming length of corrugator . The longer forming length of corrugator , the more output of pipe . We can make different forming length corrugator according to different cusotmers’ needs.

Technical Parameter

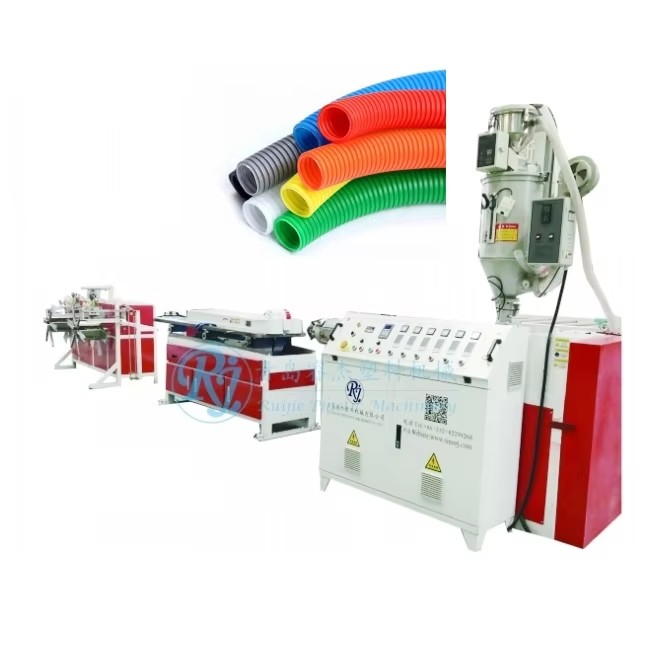

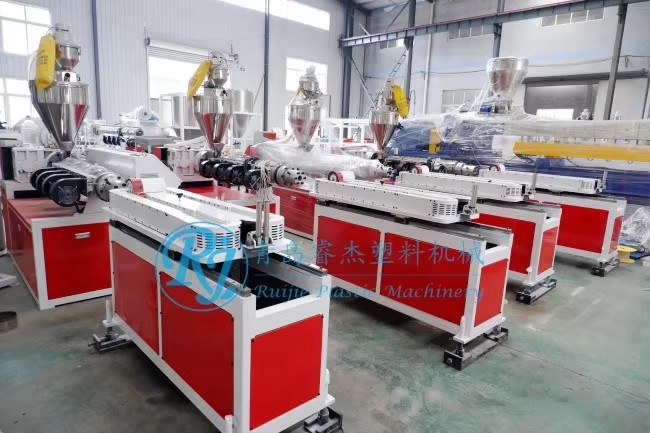

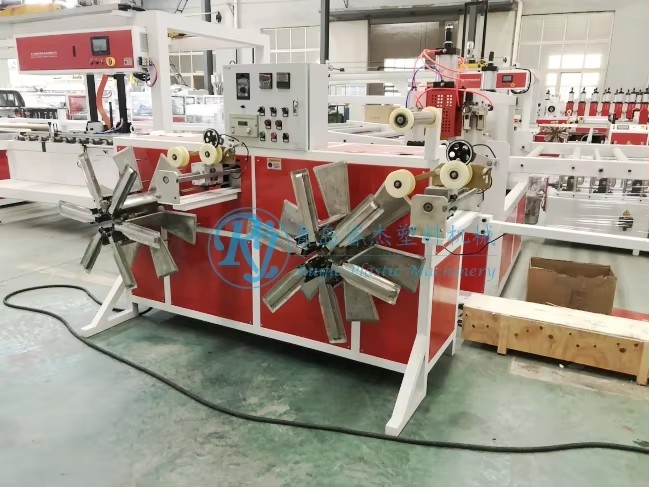

Machine Pictures

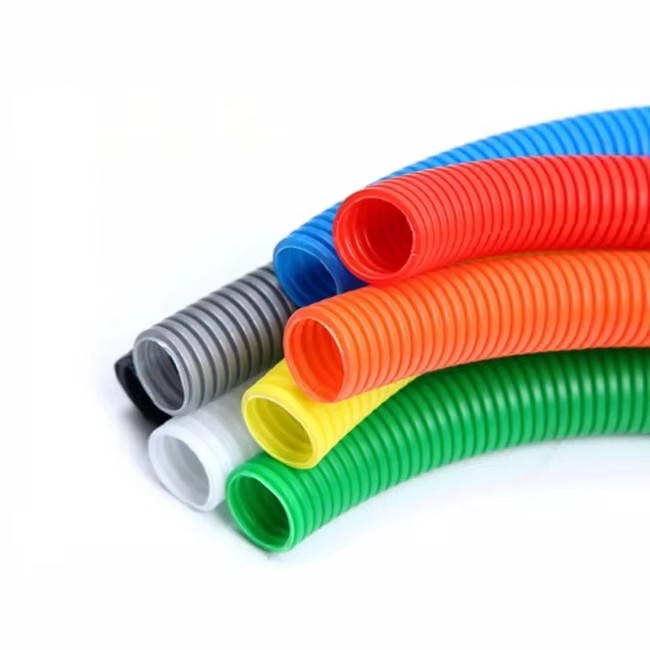

Pipe Application
