RUIJIE Construction Pet Sheet Extruder Machine Roll Eextruder Production Line for Making Pet Sheet Extrusion Line Plastic Pet

Products

Message

Category Plastic Board/Sheet Production Line

Products Description

PET sheet extrusion machine, PET sheet extrusion machinery, PETG sheet production line

This single layer or multi-layer plastic sheet has features of high intensity, good temperature-resistance, good rot-proof, etc. The sheet products can be produced with additives to different requirement such as improving intensity, improving toughness, improving rigidity, flame retardant, embossing, frosting, etc.

Application: packaging, printing, stationery, art works, etc.

Main usage: gift bag, advertising bag, file bag, lamp cover, food packaging, etc.

Production scope: thickness:0.2-2.5mm width:600-2000mm.

The PETG GAG film/sheets are mainly used to produce decorative film,it can be used as cabinet door decoration. This productin line also can produce other materails products, such PET,GAG,APET,RPET,PE,PP and others.Sheet can be used as packages box and containers for for food, milk, medicines, meat, cosmetics, etc.

GAG PETG decorative film is a three-layer composite product. The three-layer composite film is produced by co-extrusion of the middle layer of APET and the upper and lower layers of PETG raw materials in an appropriate proportion. After special coating treatment, it is especially suitable for high-frequency heat-sealing bonding and glue bonding.

Part name	Description
Extruder
Mould(T-Die)
Calender	3 rollers
Cooling bracket
Haul-off machine
Cutter
Automatic stacker

Machine Festures
1.Our machine has features of low consumption,low noise,stable running..
2.The extruder of our machine adopt special screw and barrel for extrusion.

Process Flow
Feeder→ Extruder → Mould →three roller calender → Haul-off → Cutter →auto winder
(Note: Other Auxiliary Machine, such as Crystallizer,dryer,crusher, mixer, etc. will be provided according to client’s
requirements)

RUIJIE Construction Pet Sheet Extruder Machine Roll Eextruder Production Line for Making Pet Sheet Extrusion Line Plastic Pet details

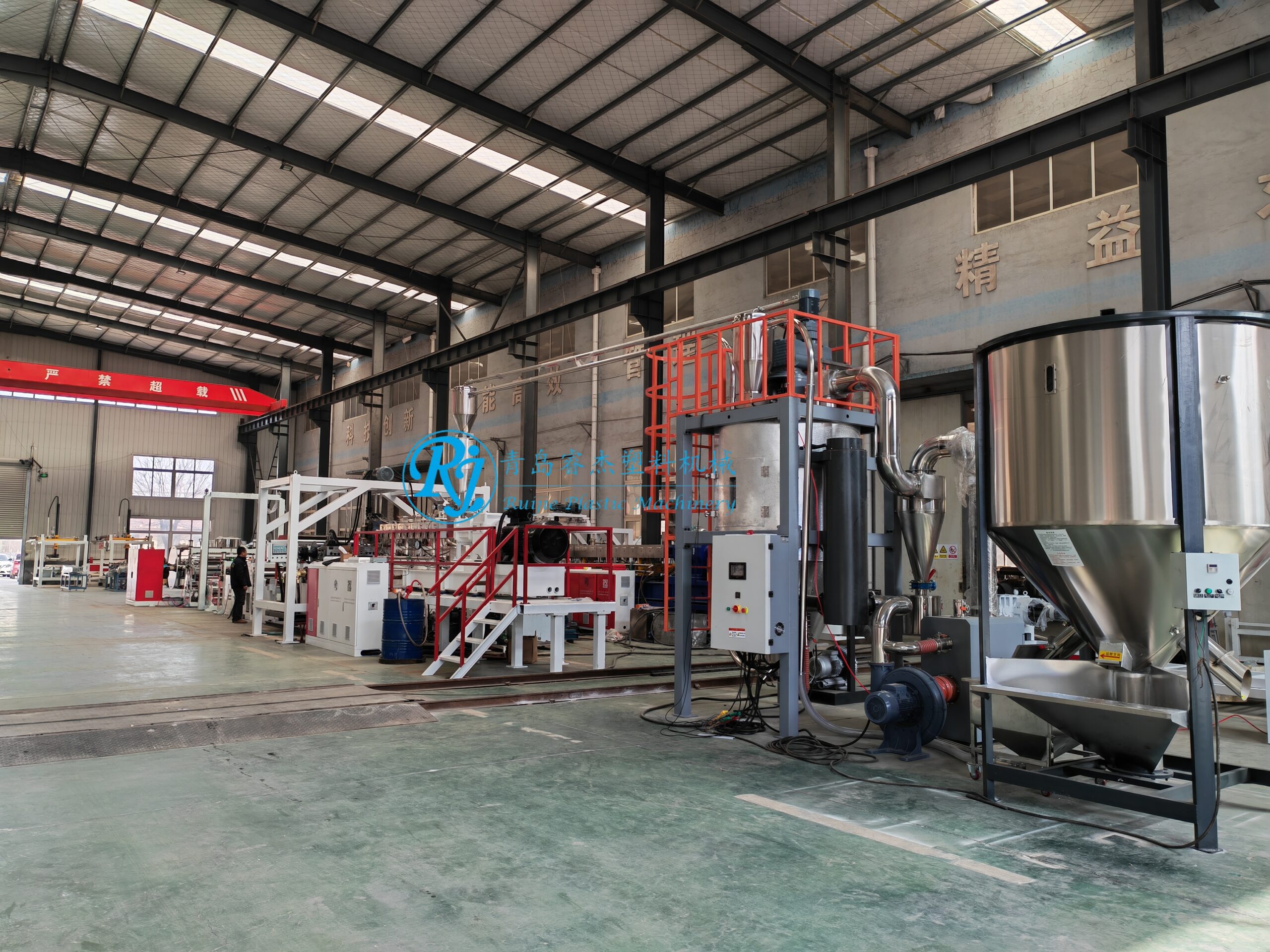

The line components

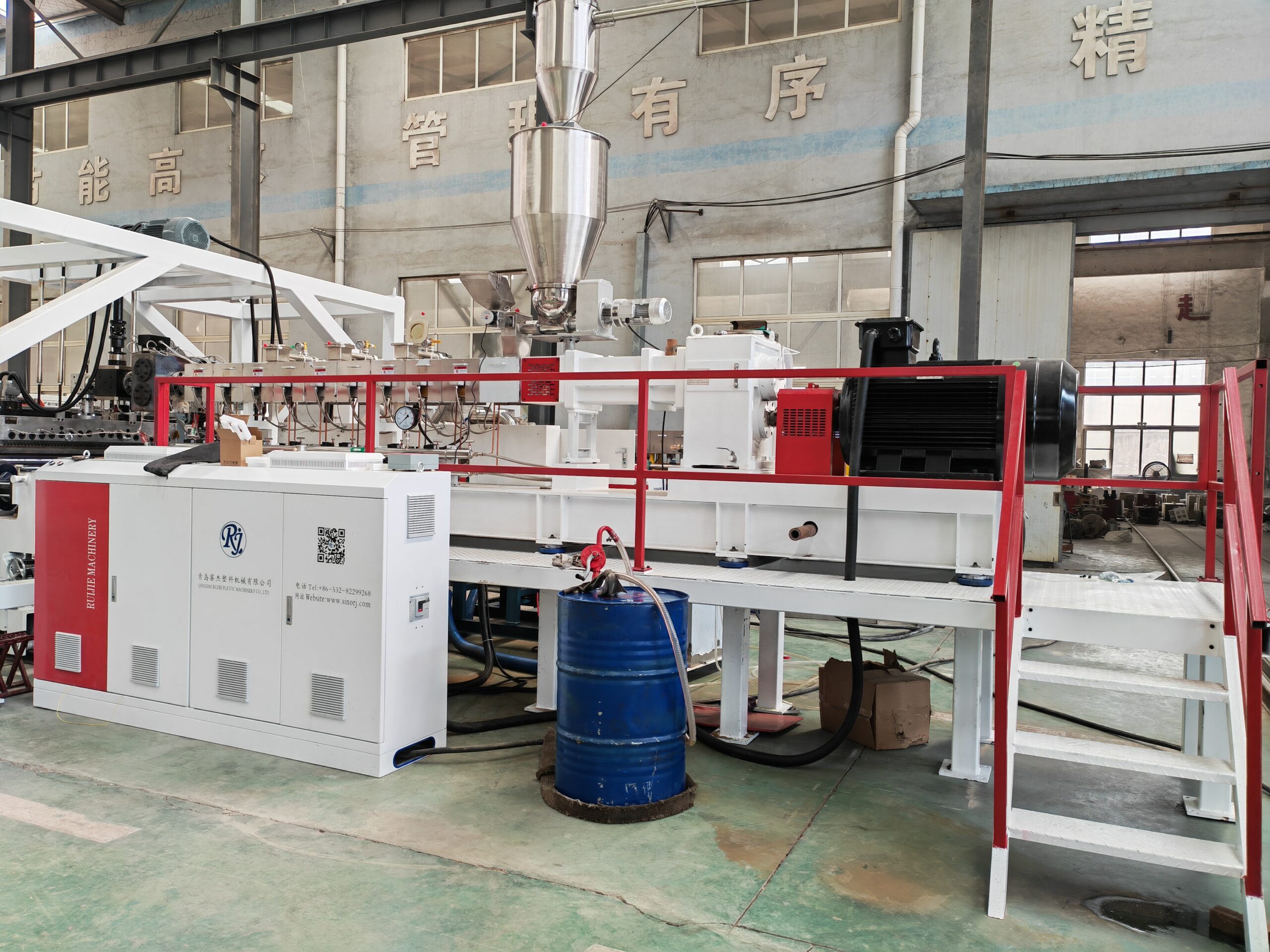

1. Parallel twin screw extruder
2. T mould

3. three roller calender
4. Haul off machine

5. Silicone oil online coating machine
4. Cutting machine
5. Auto winder
7. Mixer machine , drying machine， and crushing machine, are also optional from your real needs .
For more information and questions about this machine, please contact Linda by

Extruder Advantages

1. Vacuum automatic feeder.

2. ABB/DELTA inverter, Siemens motors, Siemens contactors.
3. PLC control system is optional.
4. High quality gearbox, screws and barrel .
